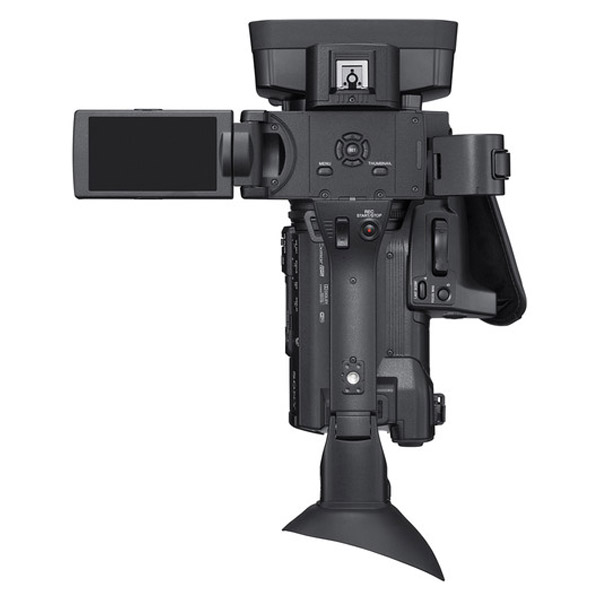

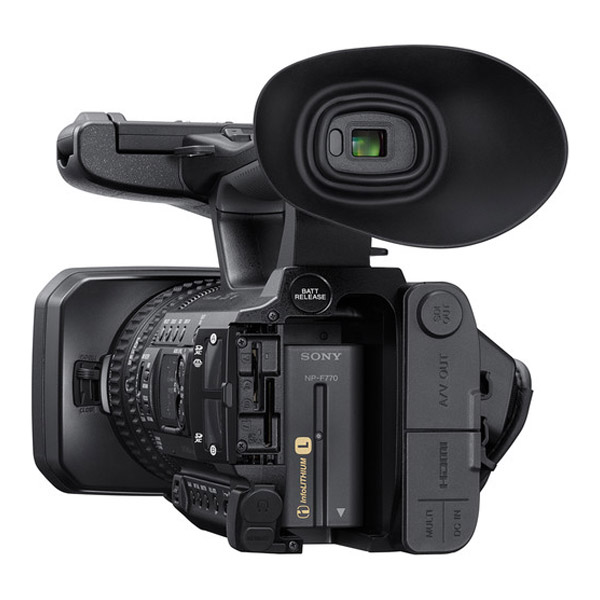

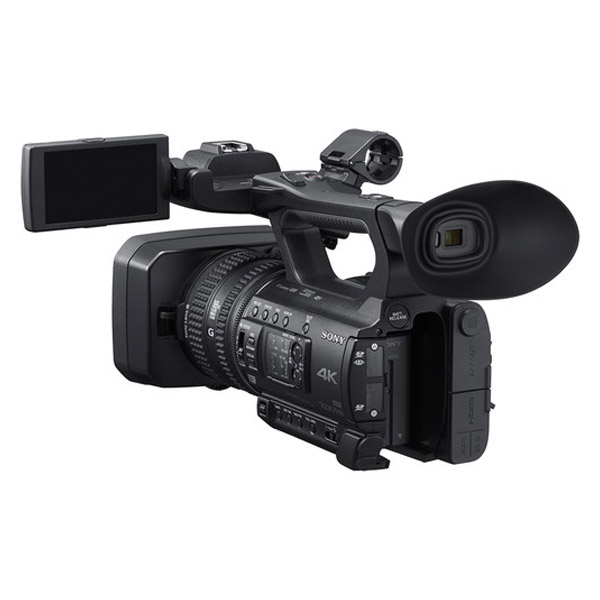

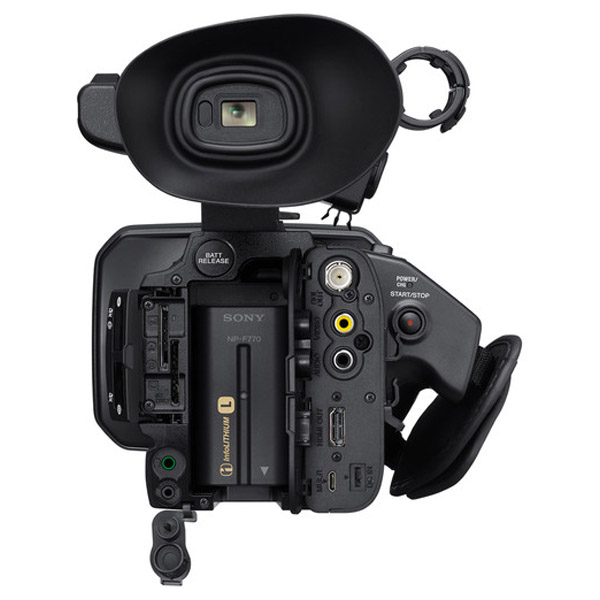

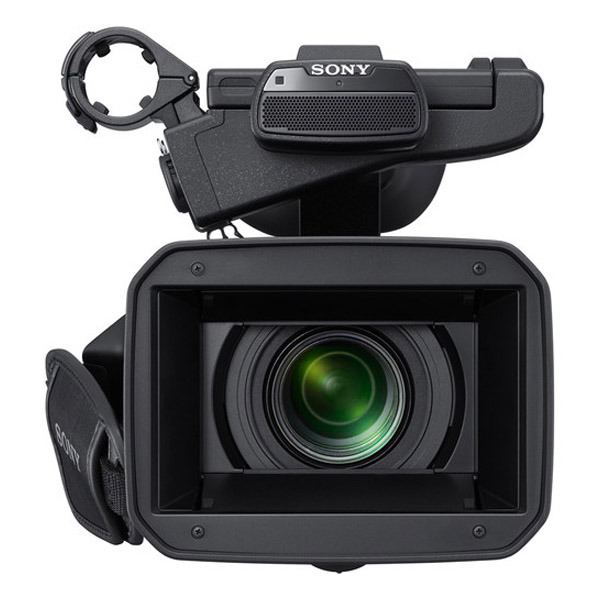

Sony PXW-Z150 4K XDCAM Camcorder

Sony PXW-Z150 4K XDCAM Camcorder

Specification:

Mass

• Approx. 1895g (Body only)
• Approx. 4lb 3 oz (Body only)
• Approx. 2270 g (with lens hood, eyecup, NP-F770 battery)
• Approx. 5 lb (with lens hood, eyecup, NP-F770 battery)
• Dimensions (W x H x D) : 171.3 × 187.8 × 371.3 mm (With the accessories (lens hood, large eyecup), excluding the grip belt and including the projecting parts) 6 3/4 x 7 3/8 x 14 5/8 inches (With the accessories (lens hood, large eyecup), excluding the grip belt and including the projecting parts) Power Requirements
• DC In: 8.4V, Battery: 7.2 V

Power Consumption

• Approx. 6.3 W (while recording with viewfinder and XAVC HD 1080/60i 50 Mbps)
• Approx. 6.6 W (while recording with LCD and XAVC HD 1080/60i 50 Mbps)

Operating Temperature

• 0°C to 40°C
• 32°F to 104°F

Storage Temperature

• -20°C to +60°C
• -4°F to +140°F

Battery Operating Time

• Approx. 260 min. with NP-F770 battery (while recording with LCD, XAVC 1080/60i, 50 Mbps)
• Approx. 400 min. with NP-F970 battery (while recording with LCD, XAVC 1080/60i, 50 Mbps)

Recording Format (Video)

• XAVC QFHD: MPEG-4 AVC/H.264 4:2:0 Long profile
• XAVC HD : MPEG-4 AVC/H.264 4:2:2 Long profile
• XAVC Proxy: MPEG-4 AVC/H.264 4:2:0 Long profile
• MPEG HD422: MPEG-2 422P@HL 4:2:2 Long profile
• MPEG HD420: MPEG-2 MP@HL 4:2:0 Long profile
• MPEG HD Proxy: MPEG-4 AVC/H.264 4:2:0 Long profile
• AVCHD : MPEG-4 AVC/H.264 AVCHD 2.0 format compatible

Recording Format (Audio)

• XAVC QFHD : Linear PCM 2ch, 24bit, 48kHz
• XAVC HD : Linear PCM 2ch, 24bit, 48kHz
• XAVC Proxy : AAC-LC 2ch, 16bit, 48kHz
• MPEG HD422 : Linear PCM 2ch, 24bit, 48kHz
• MPEG HD420 : Linear PCM 2ch, 16bit, 48kHz
• MPEG HD Proxy : AAC-LC 2ch, 16bit, 48kHz
• AVCHD : Linear PCM 2ch, 16bit, 48kHz Dolby Digital 2ch, 16bit, 48kHz

Recording Frame Rate

• XAVC QFHD (3840 x 2160) @29.97p, 25p, 23.98p 100Mbps/60Mbps
• XAVC HD (1920 x 1080) @59.94p, 50p, 50 Mbps/35 Mbps
• XAVC HD (1920 x 1080) @59.94i, 50i, 50 Mbps/35 Mbps/25 Mbps
• XAVC HD (1920 x 1080) @29.97p, 25p, 23.98p, 50 Mbps/35 Mbps
• XAVC HD (1280 x 720)@59.94p, 50p, 50Mbps
• XAVC Proxy (1280 x 720) @59.94p, 50p, 29.97p, 25p, 23.98p 9Mbps
• XAVC Proxy (640 x 360) @59.94p, 50p, 29.97p, 25p, 23.98p, 3Mbps
• MPEG HD422 (1920 x 1080) @59.94i, 50i, 29.97p, 25p, 23.98p, 50 Mbps
• MPEG HD422 (1280 x 720) @59.94p, 50p, 50Mbps
• MPEG HD420 (1920 x 1080) @59.94i, 50i, 29.97p, 25p, 23.98p, HQ mode (35Mbps)
• MPEG HD420 (1440 x 1080) @59.94i, 50i, HQ mode (35Mbps)

Recording Frame Rate (contd)

• MPEG HD420 (1280 x 720) @59.94p, 50p, HQ mode (35Mbps)
• MPEG HD Proxy (1280 x 720) @59.94p, 50p, 29.97p, 25p, 23.98p, 9Mbps
• MPEG HD Proxy (640 x 360) @59.94p, 50p, 29.97p, 25p, 23.98p, 3Mbps
• AVCHD (1920 x 1080)@59.94p, 50p, PS mode (28 Mbps)
• AVCHD (1920 x 1080) @59.94i/50i/29.97p/25p/23.98p, FX mode (24 Mbps), FH mode(17 Mbps)
• AVCHD (1280 x 720)@59.94p, 50p, FX mode (24 Mbps) FH mode (17 Mbps) HQ mode (9 Mbps)

Recording/Playback Time

• XAVC-L QFHD 100 mode, Approx. 65 min with 64 GB memory card
• XAVC-L QFHD 60 mode, Approx. 100 min with 64 GB memory card
• XAVC-L HD 50 mode, Approx. 120 min with 64 GB memory card
• XAVC-L HD 35 mode, Approx. 170 min with 64 GB memory card
• XAVC-L HD 25 mode, Approx. 220 min with 64 GB memory cardMPEG HD422 @LPCM 2ch 50 Mbps, Approx. 110 min with 64 GB memory card
• MPEG HD420 @LPCM 2ch HQ Mode, Approx. 170 min with 64 GB memory card

Recording/Playback Time (Contd)

• AVCHD@LPCM 2ch PS Mode, Approx. 290 min with 64 GB memory card
• AVCHD@LPCM 2ch FX Mode, Approx. 340 min with 64 GB memory card
• AVCHD@LPCM 2ch FH Mode, Approx. 450 min with 64 GB memory card
• AVCHD@LPCM 2ch HQ Mode, Approx. 750 min with 64 GB memory card

Lens

• Lens Mount: Fixed
• Zoom Ratio: 12x (optical), servo
• Focal Length: f = 9.3 - 111.6 mm equivalent to f = 29.0 - 348.0 mm on 35 mm lens (16:9)
• Iris: F2.8 - F4.5 auto/manual selectable
• Focus: AF/MF selectable, 10 mm to ∞ (Wide), 1000 mm to ∞ (Tele)
• Image Stabilizer: ON/OFF selectable, shift lens
• Filter Diameter: M62 mm

Camera Section

• Imaging Device (Type): 1.0-type (13.2 mm x 8.8 mm) back-illuminated Exmor RS CMOS sensor
• Imaging Device (Pixel Count): Approx. 20 M pixels (total), Approx. 14.2 M pixels (Effective)
• Effective Picture Elements: 3840 (H) x 2160 (V)

Built-in Optical Filters:

• ND filters
• OFF: CLEAR
• 1: 1/4ND
• 2: 1/16ND
• 3: 1/64ND
• Minimum Illumination: 1.7 lux (Low Lux)

Shutter Speed:

• [60i]: 1/8 - 1/10,000 (1/6 - 1/10,000 when shooting with 24p)
• [50i]: 1/6 -1/10,000

Slow & Quick Motion Function

• [60i]: XAVC HD: Frame rate selectable 1.2.4.8.15.30,60 fps
• [50i]: XAVC HD: Frame rate selectable 1.2.3.6.12.25,50 fps
• [60i]: MPEG HD: Frame rate selectable 1.2.4.8.15.30 fps
• [50i]: MPEG HD: Frame rate selectable 1.2.3.6.12.25 fps
• [60i]: AVCHD: Frame rate selectable 1.2.4.8.15.30,60 fps
• [50i]: AVCHD: Frame rate selectable 1.2.3.6.12.25,50 fps

Super Slow Motion Function

• [60i]: XAVC HD: Frame rate selectable 120 fps
• [50i]: XAVC HD: Frame rate selectable 100 fps
• White Balance: Preset (Indoor: 3200K, Outdoor: 5600K±7 steps, Color temperature set range: 2300-15000K), Onepush A, B, Auto selectable
• Gain: -3, 0, 3, 6, 9, 12,15, 18, 21, 24, 27, 30, 33 dB, AGC
• Gamma Curve: Selectable

Input/Output

• Audio Input: XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable
• Video Output: Integrated into Multi/Micro USB jack (x1), RCA pin(x1), Composite 1.0Vp-p, 75 Ω
• Audio Output: Integrated into Multi/Micro USB jack(x1), RCA pin(Monaural)(x1)
• SDI Output: BNC (x1), 3G/HD/SD SMPTE ST 424/ST 292-1/ST 259 standards
• Headphone Output: Stereo mini jack (x1)
• Speaker Output: Monaural
• DC Input: DC jack
• Remote: Stereo mini-mini jack (Φ2.5 mm)
• HDMI Output: HDMI connector (Type A)

Monitoring

• Viewfinder: 1.0cm（0.39 type) OLED, Approx. 1.44M dots
• LCD: 8.8cm (3.5 type), Approx. 1.56M dots

Built-in Microphone

• Built-in Microphone: Omni-directional stereo electret condenser microphone

Media

• Type: MS/SD(1),SD(1)

Wi-Fi/NFC

• Supported Format: IEEE 802.11 b/g/n
• Frequency Band: 2.4 GHz bandwidth
• Security: WEP/WPA-PSK/WPA2-PSK
• NFC: NFC Forum Type 3 Tag compliant
