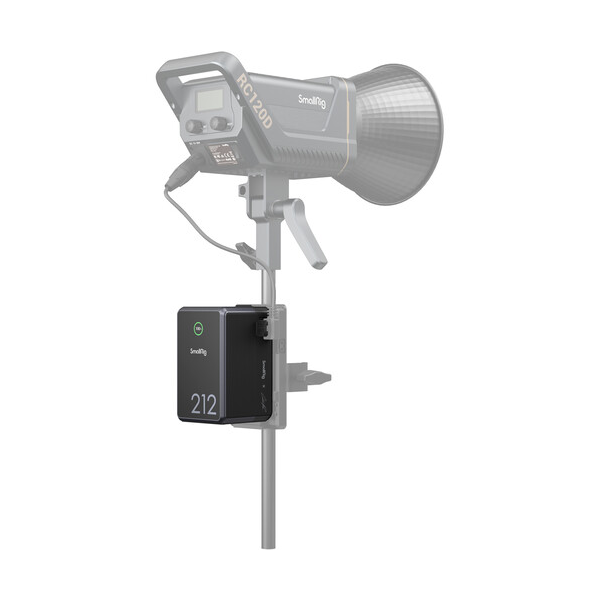

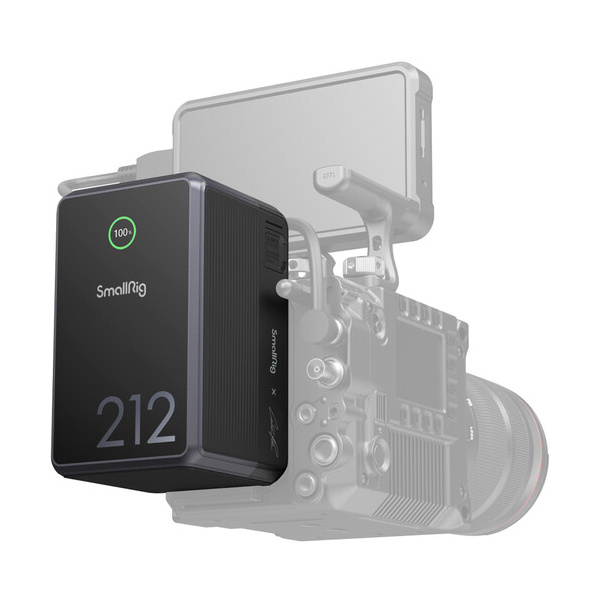

SmallRig VB212 Mini V-Mount Battery

SmallRig VB212 Mini V-Mount Battery

Feature:

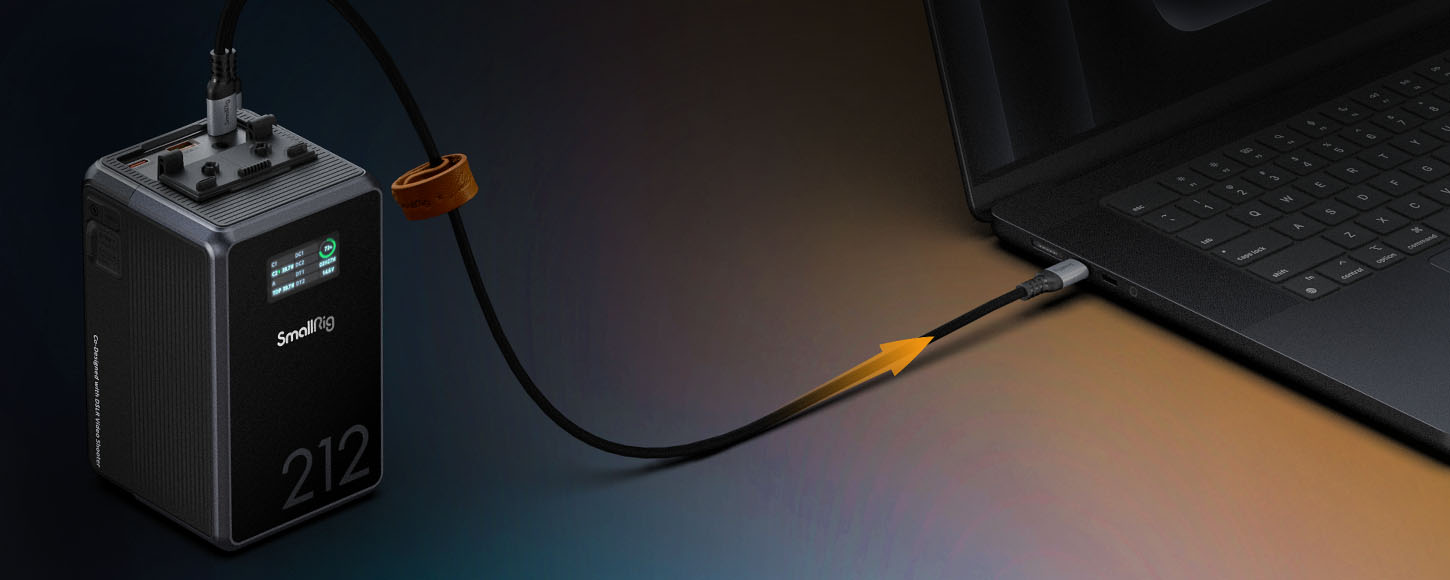

• Intelligent BMS chip supports 140W (max) fast charging; fully charged in 2.5 hours
• High-capacity LG battery cell endures repeated charging and discharging; safe and stable
• Highly integrated design, ultracompact, and travel friendly

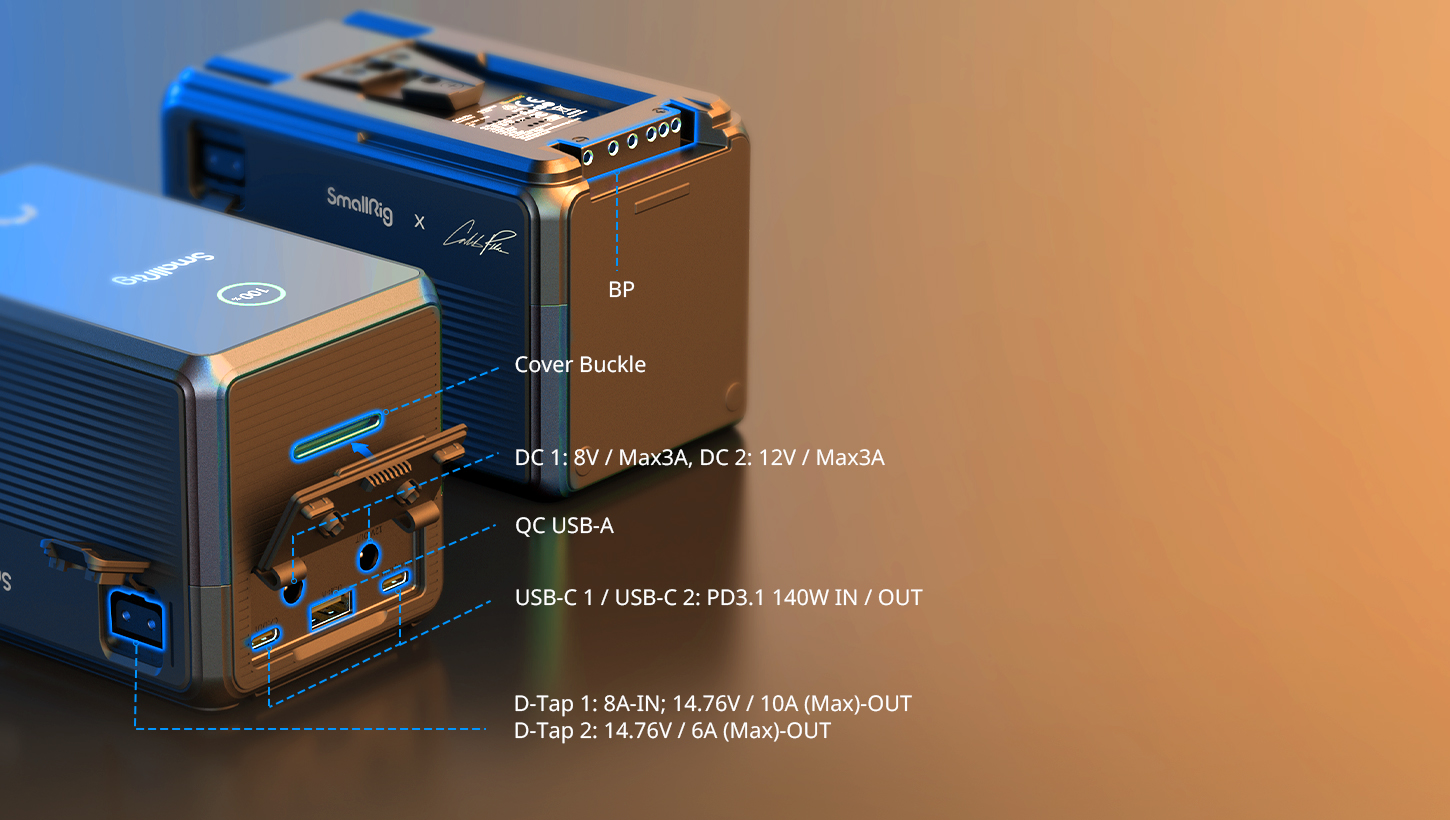

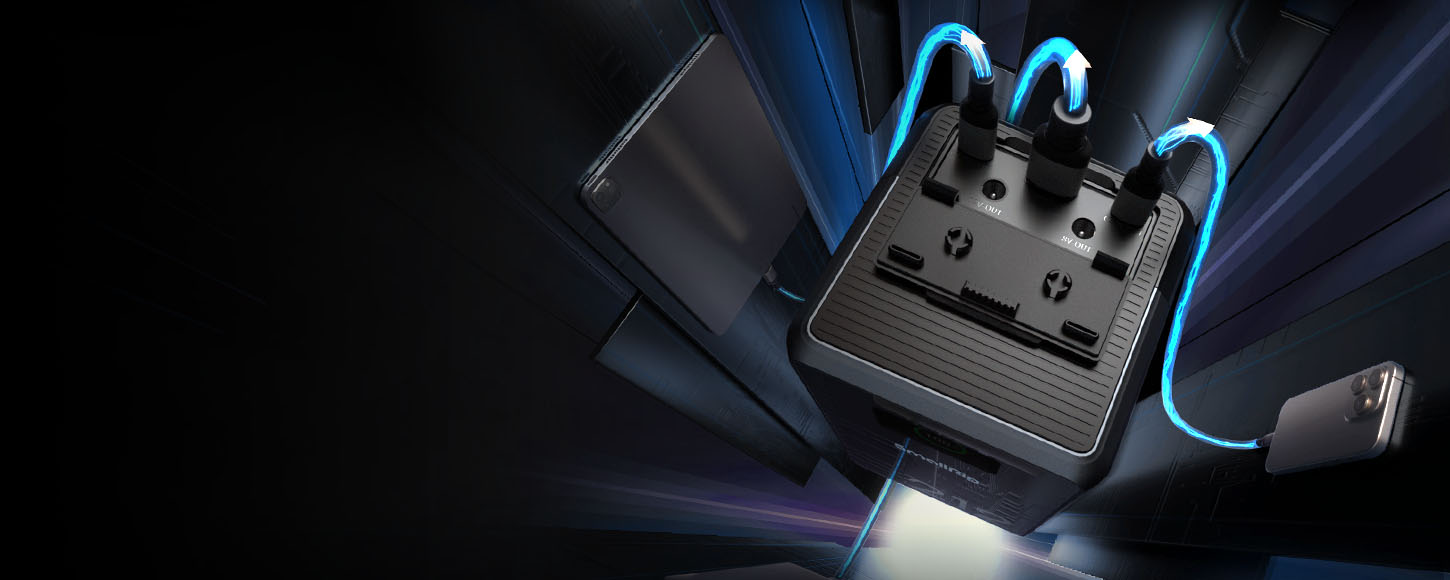

• Multiple interfaces: Two USB-C ports, two D-tap ports, a USB-A port, an 8 VDC barrel output, and a 12 VDC barrel output
• Each interface adopts a parallel circuit to allow simultaneous USB-C and USB-A fast charging

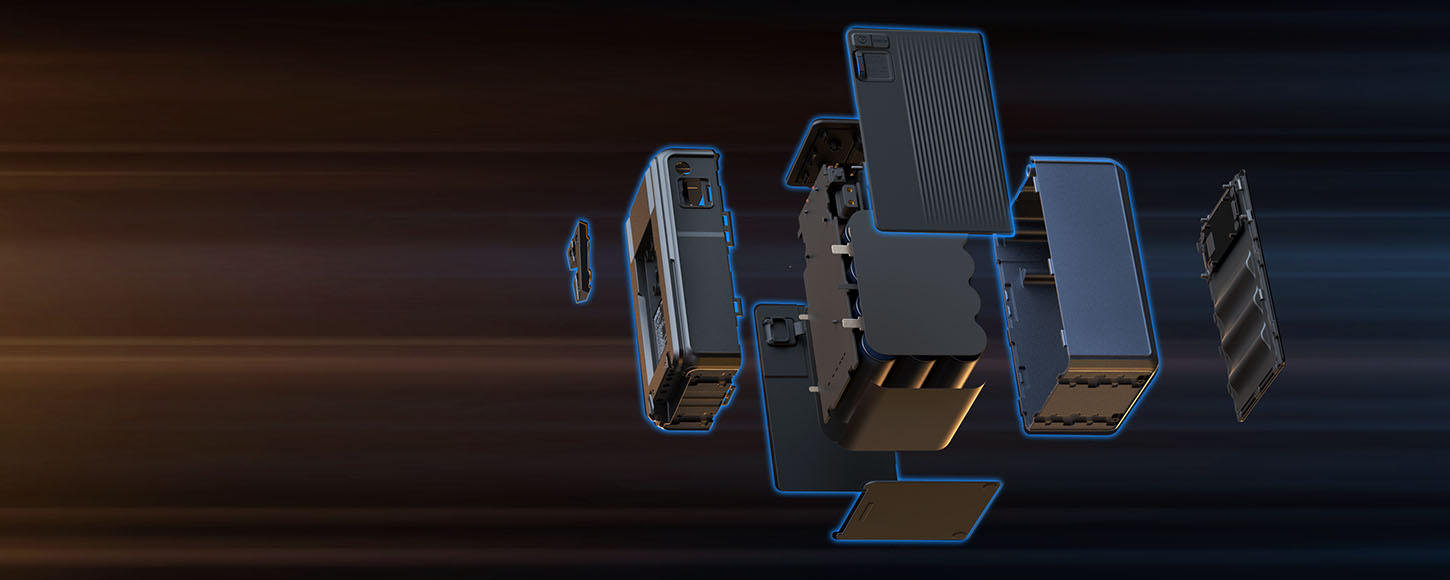

• Aluminum, silicone, TPU, and PC V0 materials; four layers of aluminum frames on the inside with silicone coating on the outside make the battery robust, drop proof, heat resistant, and flame retardant
• Durable, scratch-resistant plastic and acrylic front cover

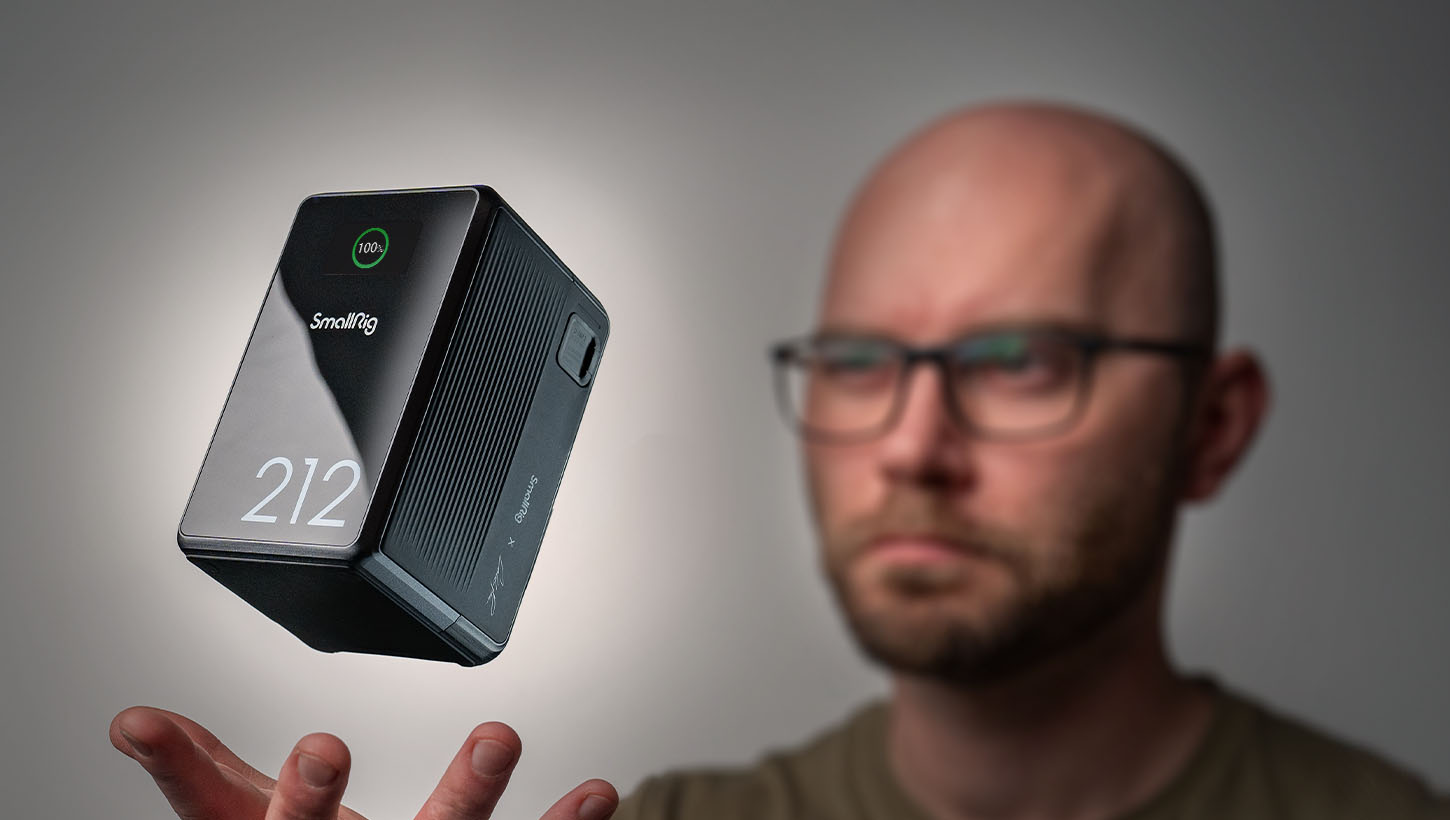

• TFT display shows battery status clearly and accurately

Specification:

• Brand: SmallRig
• Model: VB212
• Material(s): Aluminum Alloy, Silicone, TPU, PC V0
• Capacity: 14.76V 14.4Ah 212.544Wh
• Cutoff Voltage: 11.2V
• Operating Temperature: -15℃ to 60℃ / 5°F to 140°F
• Charging Temperature: 0℃ to 50℃ / 32°F to 122°F
• Optional Charging Method: BP port charger, 16.8V D-Tap charger, USB-C charger

Rated Power:

• Output: 212W
• Input: 140W

Input:

• USB-C1 / USB-C2: 140W (Max.)
• D-Tap1: 8A (Max.)
• BP: 10A (Max.)

Output:

• USB-C1 / USB-C2: 5V / 3A, 9V / 3A, 12V / 3A, 15V / 3A, 20V / 5A, 28V / 5A (Max.)
• USB-A: 5V / 3A, 9V / 3A, 12V / 2.5A (Max.)
• BP: 14.76V / 19A (Max.)
• D-Tap1: 14.76V / 10A (Max.)
• D-Tap2: 14.76V / 6A (Max.)
• 8V-OUT: 8V / 3A (Max.)
• 12V-OUT: 12V / 3A (Max.)

Charging Protocol USB-C1 / USB-C2:

• PD3.1 / QC2.0 / QC3.0 / PPS / AFC / DCP-1.5A / APPLE-2.4A
• USB-A: QC2.0 / QC3.0 / AFC/ DCP-1.5A / APPLE-2.4A
