RodeLink Newsshooter Kit Microphone

RodeLink Newsshooter Kit Microphone

The RODELink Newsshooter Kit from RODE is a wireless system for ENG (Electronic News Gathering) using series II 2.4 GHz digital transmission and 128-bit encryption. The system is able to constantly monitor and hop between frequencies to maintain the strongest possible signal level at a range of up to 328'. Both units are battery powered and can run for up to seven hours.

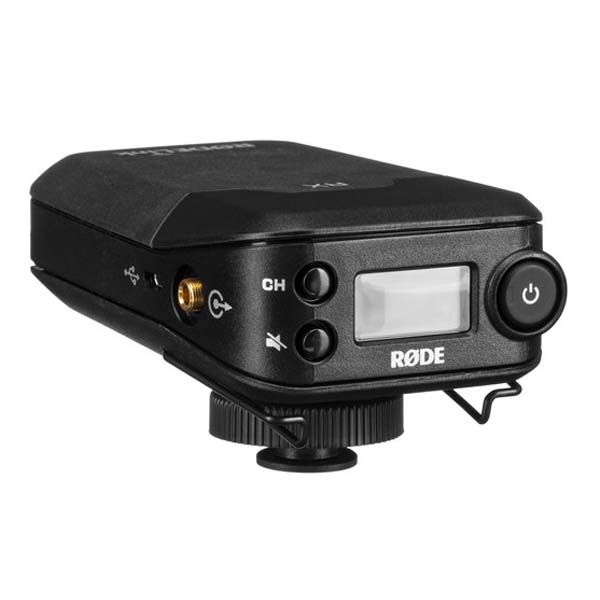

The receiver (RX-CAM) features an OLED display with information on level, battery status, mute, and channel selection. Underneath the OLED display, you'll find a pad that can attenuate signals between 0 and -20 dB. The receiver can be mounted on a standard camera shoe-mount with a 3/8" thread or a belt-clip. Through its on-board, locking 3.5mm dual-mono jack, you can monitor and/or record audio signal. General Specifications Transmission Type 2.4 GHz fixed frequency agile system Dynamic Range 112 dB Range Up to 328' / 100 m Frequency Range 35 Hz to 22 kHz Maximum Output Level 1 V Rms / 2.8 V P-p Maximum Input Level 1 V Rms / 2.8 V P-p Latency Maximum: 4 ms Receiver Model Number RX-CAM Power Source 2 X AA battery or Micro-USB Antenna Internal Input Connections 1/8" / 3.5 mm TRS locking mini-jack - dual mono Input Impedance 300 Ohms Dimensions (H x W x D) 4.4 x 2.6 x 2.0" / 111 x 65 x 52 mm Weight 6.7 oz / 190 g Transmitter Model Number TX-XLR Power Source 2 X AA battery, Sony NP-F battery, or Micro-USB Phantom Power Supplies 48 V through XLR input jack Plug-in power Supplies plug-in power through 3.5 mm TRS jack Antenna Internal Input Connections XLR with locking collar 1/8" / 3.5 mm TRS locking mini-jack socket Input Impedance XLR: 1 kOhm 3.5 mm TRS: 10 kOhms Dimensions (H x W x D) 4.7 x 1.8 x 1.8" / 120 x 45 x 45 mm Weight 7.8 oz / 222 g Packaging Info Package Weight 1.6 lb | 700 gms Box Dimensions (LxWxH) 7.0 x 5.3 x 5.0" Features

• Model: Rode RODELink Newsshooter Kit
• Diversity Camera-Mount Receiver
• Plug & Record Kit for DIY Videographer
• Plug-On Transmitter with 48V Phantom
• Use with Any Handheld or Shotgun Mic

https://youtu.be/azRQO15UXtw
