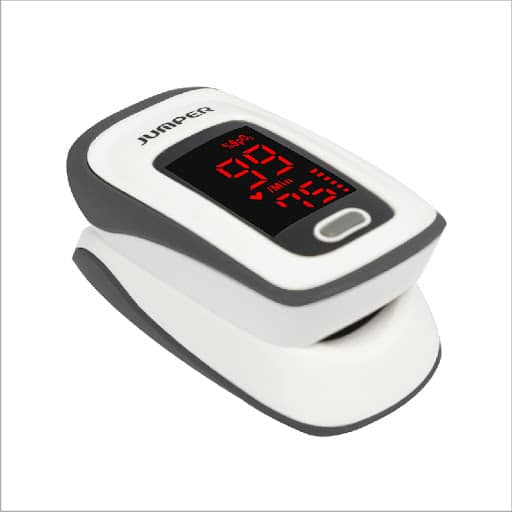

Jumper Pulse Oximeter JPD-500E

Jumper Pulse Oximeter JPD-500E

Jumper Pulse Oximeter JPD-500E Integrated with SPO2 probe and processing display module. Small in volume、light in weight and convenient in carrying. Operation of the product is simple ,low power consumption. SPO2 , PR and Ridisplay,. Pulse rate value display, bar graph display. Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage. Automatically power off function: when the device is under the state of measuring interface . it will automatically power off within 5 seconds if the finger falls out of probe. Features

• Integrated with SPO2 probe and processing display module.
• Small in volume, light in weight and convenient in carrying.
• Operation of the product is simple, lower power consumption.
• SPO2 and PR and Perfusion Index display.
• Pulse rate display, bar graph display.
• Lower battery indication.
• Various color of cover can be selected.
• Auto shut off when no signal after 10s.
• LED display, Adjustable brightness.
• SPO2: 35-100%
• Pulse Ratio: 25-250BPM
• Resolution: 1% for SPO2, 1BPM for pulse ratio
• Accuracy:±1%(70%-100%), unspecified(<70%) for SPO2,±1BPM or ±1(select larger) for pulse ratio
• Power: 1.5V(AAA size) alkaline batteries×2
• Size: 62.0×37×32mm

Technical parameters:

• LED display
• SPO2:35%-99%
• Pulse Ratio:30-250BPM
• Resolution:1% for SPO2,1BPM for pulse ratio
• Accuracy:+2%(70%-99%)
• unspecified(<70%) for SPO2
• +2BPM or+ 2%(select larger) for pulse ratio
• power:1.5V(AAA size) Alkaline batteries*2
• can work more than 30 hours continuously
• perfermance at low perfusion
