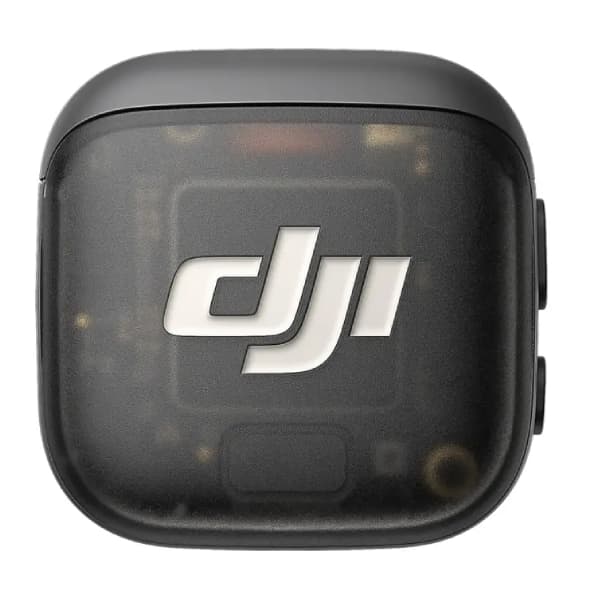

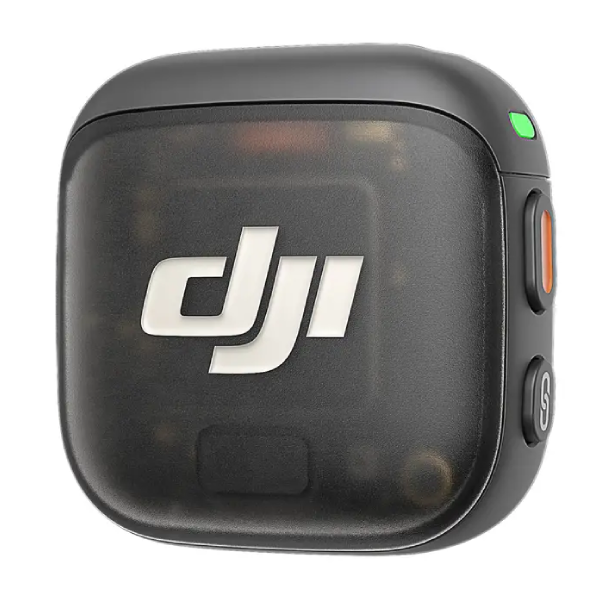

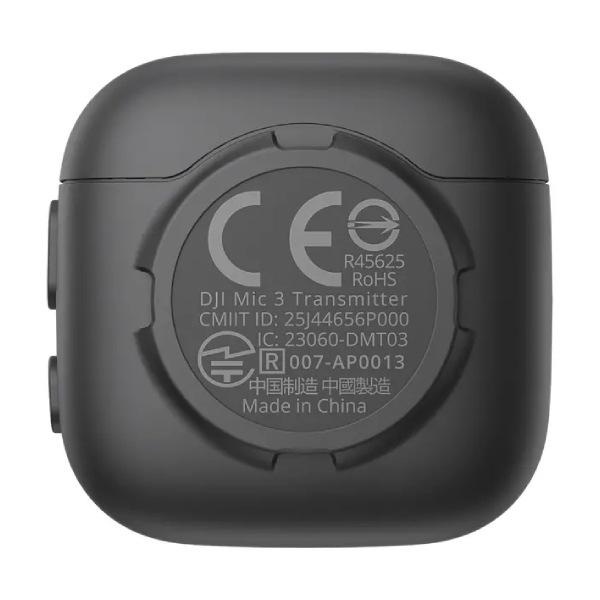

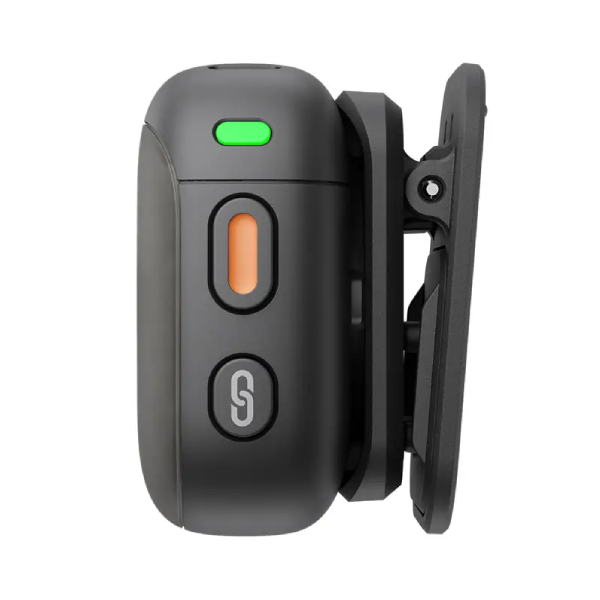

DJI Mic 3 Transmitter

DJI Mic 3 Transmitter

• Brand: DJI
• Model: DMT03
• Dimensions: 28.77×28.34×16.35 mm (L×W×H) (with magnet)
• Weight: 16 g (with magnet)
• Battery Type: Li-ion
• Battery Capacity: 137 mAh
• Battery Energy: 0.531 Wh
• Battery Voltage: 3.87 V
• Charging Specification: Max 5 V
• Charging Temperature: 5° to 45° C (41° to 113° F)
• Operating Temperature: -10° to 45° C (14° to 113° F)
• Charging Time: Approx. 50 minutes
• Operating Time: 8 hours

Wireless Mode

• Wi-Fi: 802.11 a/b/g/n/ac/ax
• SDR: Customizable

Equivalent Isotropic Radiated Power (EIRP)

Wi-Fi:

• 2.400-2.4835 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
• 5.725-5.850 GHz: < 20 dBm (FCC/SRRC), < 14 dBm (CE)

SDR:

• 2.400-2.4835 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
• 5.150-5.250 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
• 5.250-5.350 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
• 5.470-5.725 GHz: < 20 dBm (FCC/CE/MIC)
• 5.725-5.850 GHz: < 20 dBm (FCC/SRRC), < 14 dBm (CE)

Wireless Mode Operating Frequency

• Bluetooth Protocol: Bluetooth 5.4
• Bluetooth Operating Frequency: 2.400-2.4835 GHz

Wi-Fi:

• 2.400-2.4835 GHz
• 5.725-5.850 GHz

SDR:

• 2.400-2.4835 GHz
• 5.150-5.250 GHz
• 5.250-5.350 GHz
• 5.470-5.725 GHz
• 5.725-5.850 GHz

Bluetooth Transmitter Power (EIRP)

• BLE: < 10 dBm
• BR/EDR: < 20 dBm

Internal Recording Available Duration

• 24-bit (Single File): 57.3 hours
• 24-bit (Dual File): 28.6 hours
• 32-bit Float (Single File): 43.0 hours
• 32-bit Float (Dual File): 21.5 hours
