Name: CUDY WR3600E BE3600 Gigabit Wi-Fi 7 Router
Brand: Cudy
SKU: WOO-230159
Price: 7800 BDT
Availability: InStock

CUDY WR3600E BE3600 Gigabit Wi-Fi 7 Router

Feature:

Broadcom 2 GHz Quad-Core CPU
4-Stream Dual-Band Wi-Fi 7
2882 Mbps + 688 Mbps Wi-Fi ¹
4× Gigabit Ethernet Ports
200 Connected Devices ²

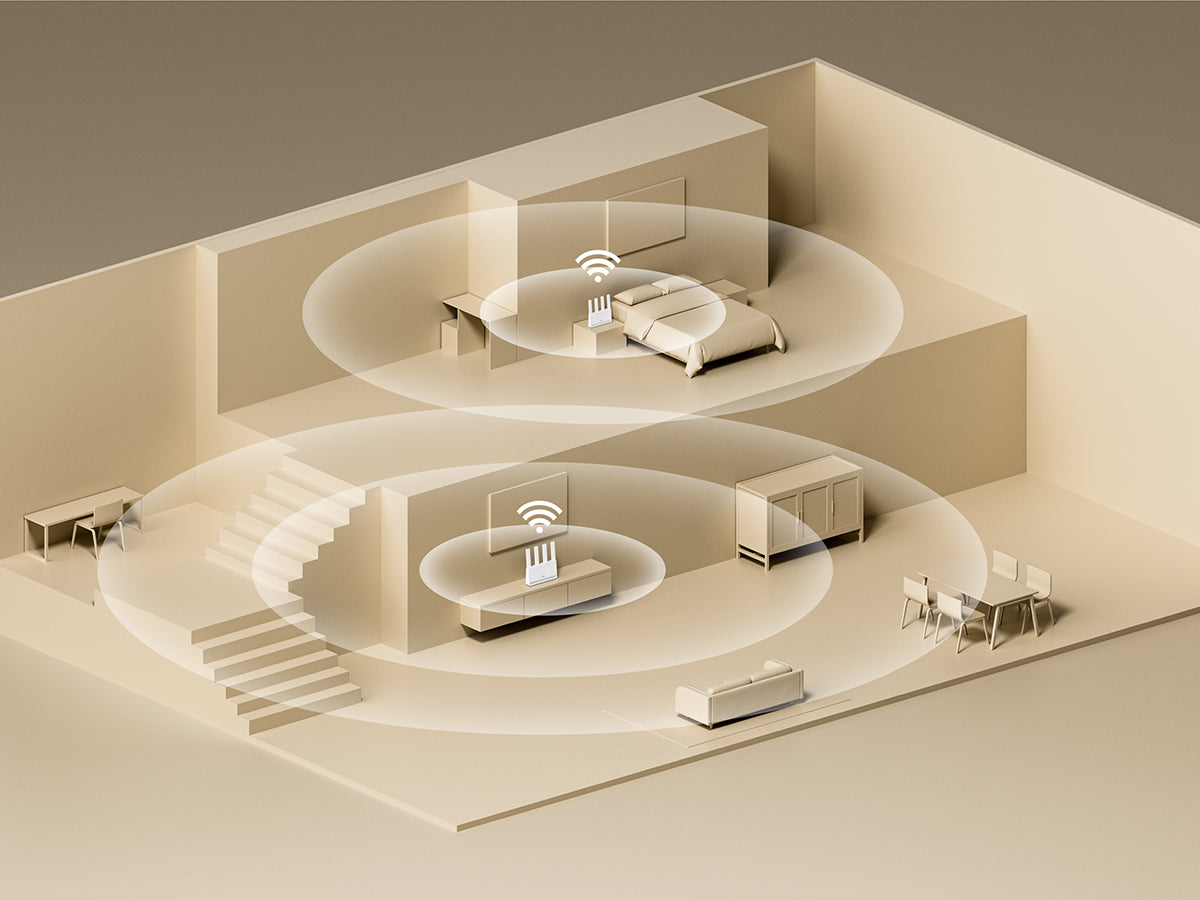

Covers 130 m² (1,400 ft²) ³
VPN Server and Client
Cudy App, Cloud Control

Specification:

Brand	CUDY
Model	WR3600E
Type	BE3600 Gigabit Wi-Fi 7 Router
CPU	Chipset: BCM6764 CPU Details: 2.0 GHz Quad-Core, ARM Cortex-A7
Memory/Storage	Flash/ROM: 128 MB (1 Gbit) NAND DDR/RAM: 512 MB (4 Gbit) DDR3L
Wireless	5 GHz Wi-Fi Speed: 2882 Mbps 2.4 GHz Wi-Fi Speed: 688 Mbps 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO) 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO) Wi-Fi Antennas: 4× Fixed 5 GHz Antenna Gain Max: 7.8dBi 2.4 GHz Antenna Gain Max: 5.2dBi FEM or PA/LNA: 5 GHz: 2× External 2.4 GHz: 2× External Beamforming: True Range Performance: Max: 220 m (722 ft) Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions. Wall Performance: Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
Interfaces	Gigabit RJ45 Ports: 4 Ethernet Notes: 1× WAN port, the rest are LAN ports LED: System Internet 2.4 GHz Wi-Fi 5 GHz Wi-Fi WAN LAN Physical Buttons: WPS Button Reset Button Power Input: DC Jack
Power	Power Methods: DC DC: 12V 1A Power Adapter: Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC Max Power Consumption (W): 8.5W
Reliability	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing
Installation	Installation: Desktop Product Weight: 339.8 g (11.99 oz.) Dimension: 209×48×220.4 mm (8.23×1.89×8.68 inches)
Wireless	Wi-Fi Standards: Wi-Fi 7 Max Wi-Fi Modulation: 4K-QAM Wi-Fi Efficiency: MLO MRU Puncturing OFDMA MU-MIMO BSS Color Max Capacity: 512 Recommended Client Upper Limit: 200 Max Wi-Fi Channel Width: 160 MHz Wi-Fi Security: WPA/WPA2/WPA3 Guest Network: 2.4 GHz, 5 GHz WPS: True
General	Operation Modes: Wi-Fi Router Access Point Multi-Band Backhaul: True WAN Mode: DHCP Static IP PPPOE PPTP L2TP Notes: The Range Extender/WISP/Client modes will be available with later firmware upgrade.
Network	QoS: Per-User Rate Limiting DHCP: Address Reservation DHCP Client List Server IP Versions: IPv4/IPv6 IPv6 Protocols: Relay Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite IPTV/VLAN: Bridge Tag VLAN VoIP VLAN IPTV VLAN TTL Customization: Extend Spoof Custom IGMP: IGMP Proxy IGMP Snooping Forwarding: Port Forwarding Port Triggering UPnP DMZ Firewall: SPI Firewall DoS Protection Block PING Application Layer Gateway: IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough
Utilities	VPN Server: WireGuard OpenVPN IPsec Zerotier PPTP L2TP VPN Client: WireGuard OpenVPN IPsec Zerotier PPTP L2TP DNS Options: DNS over TLS Manual DNS Rebind Protection Override Clients' DNS DNS over TLS Providers: Cloudflare Google Quad9 Custom Wake on LAN: True Online Detection: True
Management	All Devices Management: Wi-Fi Time Schedule MAC Filter IP/MAC Binding Per-Devices Management: Internet On/Off VPN On/Off Online Time Schedule Device Rename Content Management: Domain Filter IP Filter
System	LED Control: Ture Local Control Method: Config Web Page App Control Remote Control Method: Config Page via HTTPS App Control TR069/TR098/TR111/TR181 Firmware Upgrade: Local Update App (Over the Air) Online Update Reliability: Timed Reboot Backup and Restore Diagnostic Tools: Diagnosis Ping Traceroute NSLookup System Log Languages: English Bengali Catalan Czech German Greek Spanish French Hebrew Croatian Hungarian Italian Japanese Khmer Korean Dutch Norwegian Polish Portuguese Romanian Russian Slovak Swedish Thai Turkish Ukrainian Vietnamese Simplified Chinese Traditional Chinese
Dashboard	Panel: Internet Status Devices Management WAN Status LAN Status Wi-Fi Status VPN Status DHCP Server Status System Version Charts: Internet Speed Wi-Fi Speed Notes: Mesh Status and WISP Status will be avaialble with later firmware upgrade. Mesh Topology and WISP Speed will be available with later firmware upgrade.
Included in the Box	WR3600E Power Adapter Ethernet Cable Installation Guide
Warranty Details	1-Year Brand Warranty
