AKG WMS40 Mini Single Vocal Set Wireless Microphone

AKG WMS40 Mini Single Vocal Set Wireless Microphone

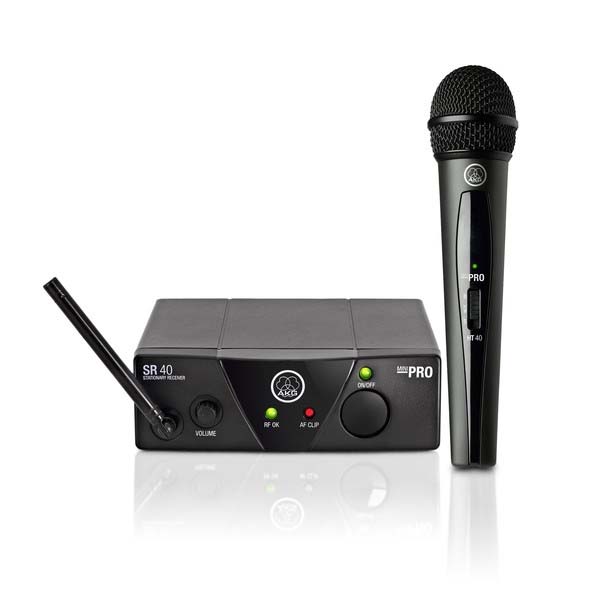

The band B WMS40 Mini Single Vocal Set Wireless Microphone System from AKG features a single-channel SR40 Mini receiver and an HT40 Mini handheld transmitter, and is a true plug and play wireless solution. It provides clear audio sound and can be used to capture audio in several environments for applications such as live stage, rehearsals, Specification :

• Frequency Bandwidth: Band B
• Audio Frequency Response: 40 to 20 kHz
• Signal to Noise: 110 dBA
• Total Harmonic Distortion: (THD) 0.8 % @ 1 kHz
• Operating Temperature Range: 14 to 131°F (-10 to 55°C)
• Peak Deviation: 45 kHz
• Nominal Deviation: 15 kHz
• Radio Output Power: 10 mW
• Transmitter Synchronization: Manual
• Interchangeable Mic Head:s No
• Channels: 3
• Number of Selectable Frequencies: 1 fixed frequency
• Range: 66' (20 m)
• Modulation: FM
• Pilot Tone: No
• Encryption: No
• Battery: 1 x LR6 AA alkaline
• Operating Time: 30 hours
• Material of Construction: Plastic
• Dimensions: 9.1 x 2.0" (230 x 51 mm)
• Weight: 6.9 oz (195 g)
• Receiver
• Frequency Bandwidth: Band B
• Audio Frequency Response: 40 to 20 kHz
• Signal to Noise: 110 dBA
• Total Harmonic Distortion: 0.8% @ 1 kHz
• Operating Temperature Range: 14 to 131°F (-10 to 55°C)
• Radio Sensitivity: -100 dBm
• Channels: 3
• Number of Selectable Frequencies: 1 fixed frequency
• Frequency Selection: Fixed
• Range: 66' (20 m)
• Modulation: FM
• Encryption: No
• Pilot Tone: No
• Transmitter Synchronization: Not necessary
• HiQnet Compatible: No
• Rack Compatibility: 1/3 rack size (19")
• Rack height: 1 RU
• Antenna 1 x fixed external antenna
• Audio Output: 1 x balanced TRS 1/4" (6.3 mm) female jack
• Balanced audio output: adjustable from mic to line level
• Output level at rated deviation: 500 mV rms
• Internal Power Supply: No
• Type: DC socket
• Voltage: 12 V
• Material of Construction Metal
• Dimensions 5.2 x 1.7 x 5.2" (132 x 43 x 133 mm)
• Packaging Info
• Package Weight: 2.55 lb
• Box Dimensions: (LxWxH) 11.8 x 9.55 x 2.45"

Features

• • For Vocal and Speech Applications
  • SR40 Mini Single Wireless Receiver
  • HT40 Mini Wireless Handheld Transmitter
  • Single Fixed Frequency
  • Balanced 1/4" Jack Output
  • Runs 30 Hours on a Single AA Battery
  • Includes a Universal Power Supply
