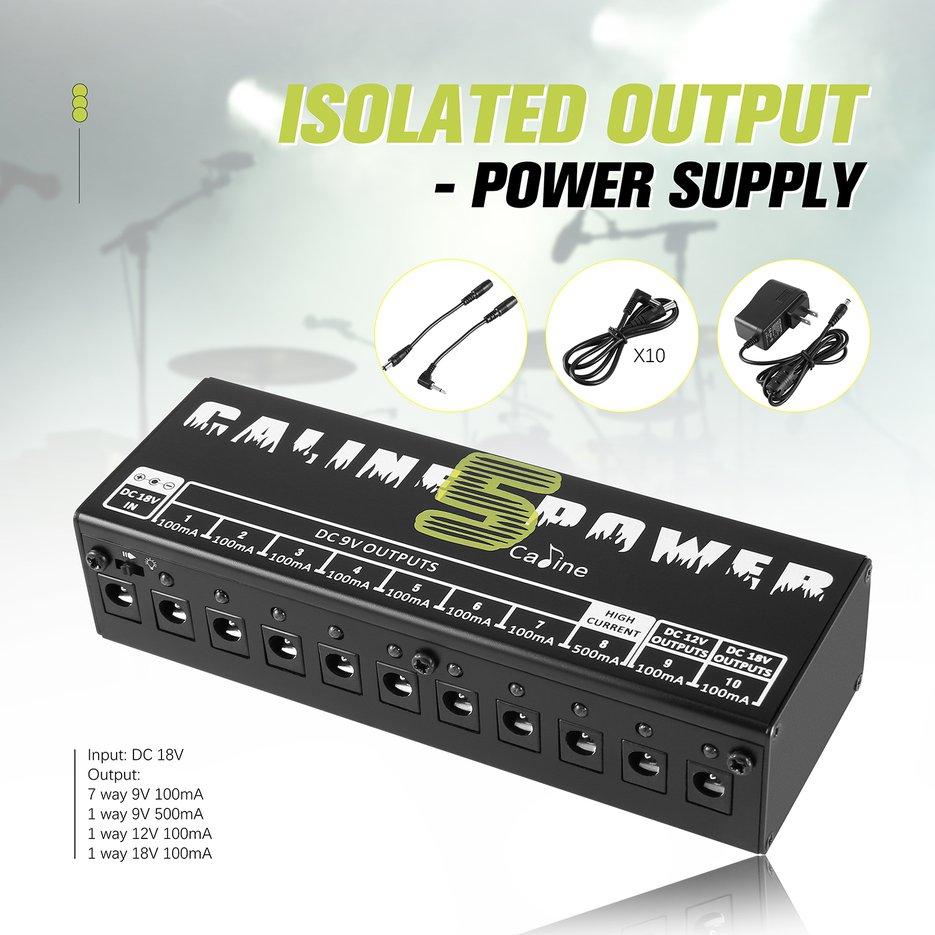

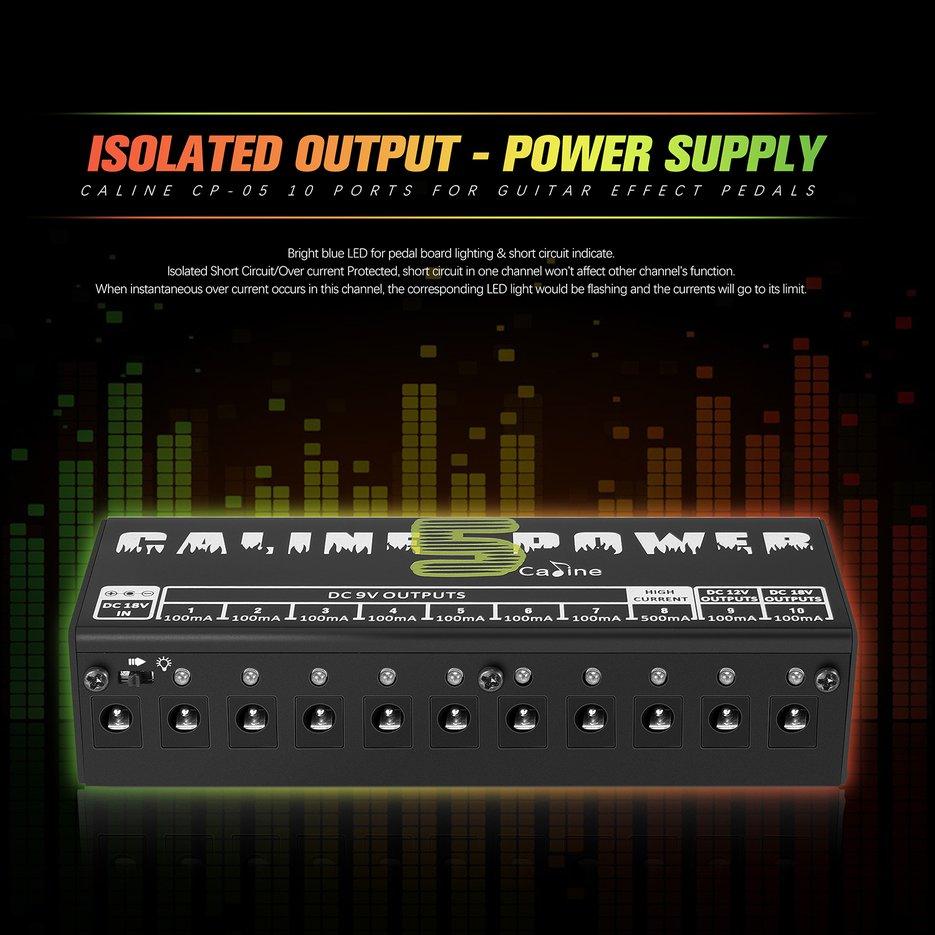

A Caline CP-05 10 Ports Isolated Output Power Supply for Guitar Effect Pedals

A Caline CP-05 10 Ports Isolated Output Power Supply for Guitar Effect Pedals

• Powers for 9V, 12V or 18V guitar effects pedal.

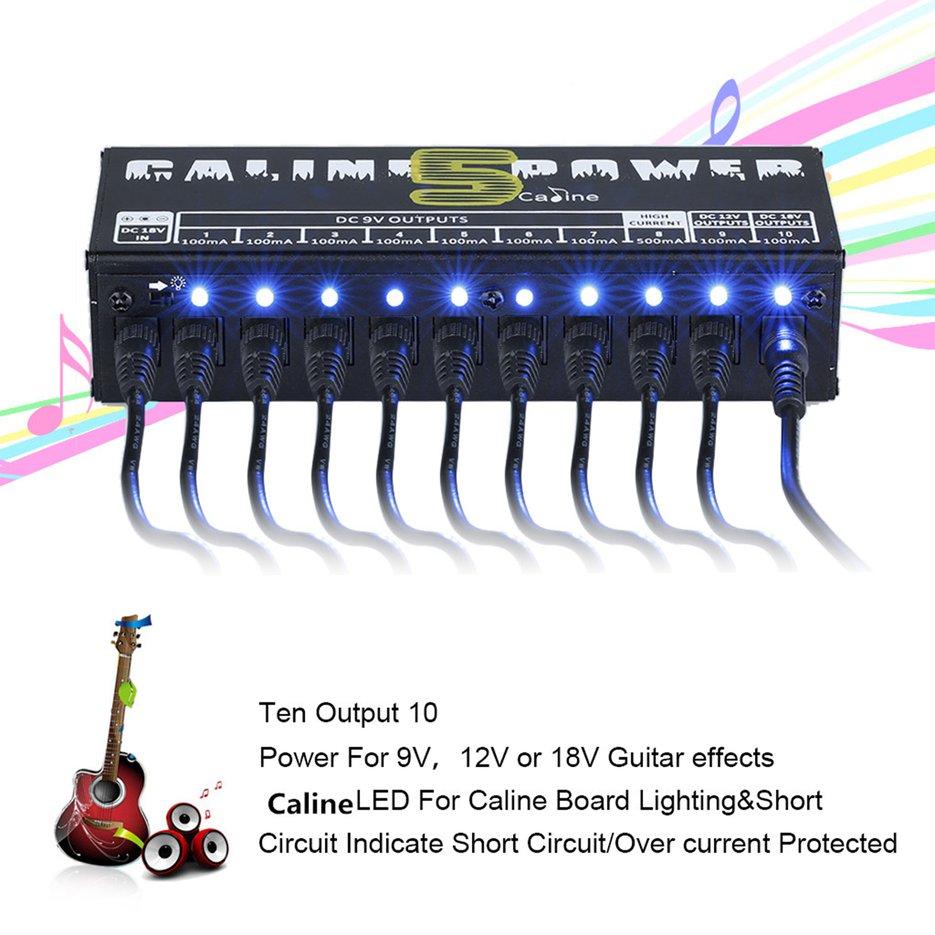

• Bright blue LED for pedal board lighting & short circuit indicate.
• Isolated Short Circuit/Over current Protected, short circuit in one channel won't affect other channel's function.
• And it plays a part in detecting the short circuit part.
• When instantaneous over current occurs in this channel, the corresponding LED light would be flashing and the currents will go to its limit.

• Brand name: Caline
• Model: CP-05
• Material: plastic
• Color: black
• Size: 150x50x30mm
• Plug type: US plug, EU plug, UK plug, AU plug
• Power: AC 110-130V(US plug); AC 220-240V (EU/UK/AU plug);
• Input: DC 18V

• 7 way 9V 100mA
• 1 way 9V 500mA
• 1 way 12V 100mA
• 1 way 18V 100mA
