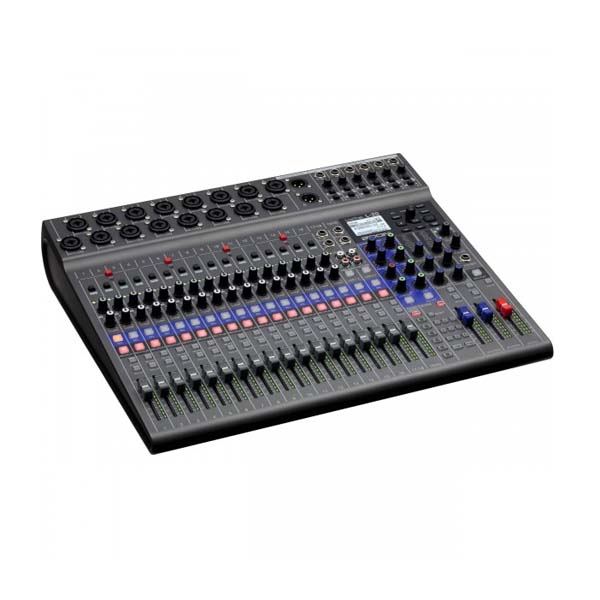

Zoom LiveTrak L-20 20-channel Digital Mixer / Recorder

৳ 92,000৳ 95,000 (-3%)

In stock

Zoom LiveTrak L-20 20-channel Digital Mixer / Recorder

The Zoom LiveTrak L-20 makes capturing a rehearsal, producing a quick demo, or creating a great-sounding concert recording easy. Not only can you record up to 22 individual channels, but you can also create custom headphone mixes for up to six band members and craft a polished live mix complete with studio-quality effects. You can complete your entire project on the L-20 or transfer all 20 discrete tracks to your DAW for editing and mixing. The LiveTrak L-20 also functions admirably as a 22-in/4-out USB audio interface for your Mac, PC, or iOS device.

Specification :

  • Brand : Zoom
  • Model : L-20
  • Type: Digital Mixer with USB Interface
  • Channels: 20
  • Inputs – Mic Preamps: 16 x XLR-1/4″ combo (mic/line)
  • Phantom Power: Yes
  • Inputs – Line: 4 x 1/4″ (2 x stereo channels), 2 x Dual RCA Stereo
  • Inputs – Other: 2 x XLR-1/4″ combo (Hi-Z)
  • Outputs – Main: 2 x XLR (master)
  • Outputs – Other: 6 x 1/4″ (monitor)
  • Busses/Groups: 2 x FX Buses
  • Talkback: Built-in Slate Mic
  • Remote: 1 x 1/4″ (footswitch control), 1 x Remote Port (BTA-1 adapter)
  • USB: 1 x Type A, 1 x Type B
  • Computer Connectivity: USB (22 x 4)
  • Headphones: 1 x 1/4″ TRS
  • Faders: 18 x channel faders, 2 efx faders, 1 x master
  • A/D Resolution: Up to 24-bit/96kHz
  • EQ Bands: 3-band Mid-parametric EQ
  • Effects: 20 effect variations ; Reverb, Delay, Chorus
  • Signal Processing: Compression (16 channels)
  • Features: 22 recording tracks, 20 playback tracks, 9 scene recall settings
  • Transport Controls: Yes
  • Screen: LCD screen
  • Storage: SDHC/SDXC Card Slot
  • Software: Remote Mixer App (iPad, BTA-1 bluetooth adapter required)
  • Rackmountable: Yes (RKL-12 kit sold separately)
  • Power Source: 12V DC 2A power supply (included)
  • Height: 3.25″
  • Depth: 15.3″
  • Width: 17.5″
  • Weight: 8.1 lbs.
  • Manufacturer Part Number: ZL20

Feature :

  • 20-channel digital mixer (16 mono/2 stereo)
  • 22-in/4-out USB audio interface for your Mac, PC, or iOS device (Apple Lightning to USB Camera Adapter is required for iOS)
  • 22-track 24-bit/96kHz recording directly to an SD card
  • Record up to 48kHz to a computer and an SD card simultaneously
  • Create customizable, savable headphone mixes for up to 6 band members
  • Complete your entire project on the mixer, or transfer all 22 discrete tracks to your DAW for editing and mixing
  • 16 combo jacks accommodate both XLR and 1/4″ connectors
  • 16 great-sounding mic preamps with phantom power and +60dB of gain
  • Channels 1 and 2 offer hi-Z inputs for your electric guitar or bass
  • Channels 17/18 and 19/20 have TRS and RCA connectivity for keyboards and other audio devices
  • Each channel features a 3-band mid-parametric EQ and 20 built-in effects
  • Channels 1–16 include a dedicated compressor for controlling dynamics
  • Channels 3–16 have a -26dB Pad for capturing loud sources
  • Clear 12-segment LED metering for keeping an eye on your levels
  • Save up to 9 scenes and recall your custom settings automatically
  • Record automatically when the Master fader detects a certain dB level
  • Capture data up to 2 seconds before recording starts, in case a performance begins ahead of time
  • Built-in slate mic for recording comments or talkback
  • Onboard metronome for keeping the band in sync

Craft professional-quality live mixes

The LiveTrak L-20 makes crafting pro-quality live mixes easy. Each of its 22 discrete channels features a 3-band mid-parametric EQ and 20 built-in effects. Sixteen combo jacks accommodate both XLR and 1/4″ connectors and are loaded with great-sounding mic preamps and dedicated compressors. Channels 1 and 2 offer hi-Z inputs for your electric guitar or bass, while channels 17/18 and 19/20 have TRS and RCA connectivity for keyboards and other audio devices. You also get clear 12-segment LED metering for keeping an eye on your levels.

Produce great-sounding recordings

Recording your entire band has never been simpler, thanks to the Zoom LiveTrak L-20. Twenty-two individual tracks are conveniently captured onto an SD card at 24-bit/96kHz. You can then mix and overdub directly within the L-20 using its onboard effects or transfer the entire project to your DAW for further editing and processing. If you’re performing live, you can record and mix your show simultaneously. You can even set up the L-20 to record automatically when the Master fader detects a certain decibel level — perfect for situations where the engineer and performer are the same person. At Sweetwater, we found that the L-20 makes recording incredibly fast and easy.

Create six custom headphone mixes

With the LiveTrack L-20, you don’t need separate personal monitor mixers — the monitoring is built in. Each of its six discrete monitor outputs provides a custom mix, so each member of your band can create and save their own. The L-20’s headphone amplifier delivers lots of volume — even drummers won’t have a difficult time hearing.

More than a mere digital mixer

The Zoom LiveTrak L-20 is equipped with several operation modes. Put it in Audio Interface mode and the L-20 transforms into a 22-in/4-out USB interface for your Mac, PC, or iOS device with flexible routing options. In USB Host mode, you can transfer projects and files to a connected USB flash drive. Card Reader mode allows you to transfer files to and from your computer.

Zoom LiveTrak L-20 20-channel Digital Mixer / Recorder 4

Zoom LiveTrak L-20 20-channel Digital Mixer / Recorder 5

Zoom LiveTrak L-20 20-channel Digital Mixer / Recorder 6

Zoom LiveTrak L-20 20-channel Digital Mixer / Recorder 7

What is the price of Zoom LiveTrak L-20 20-channel Digital Mixer / Recorder in Bangladesh?

The latest price of Zoom LiveTrak L-20 20-channel Digital Mixer / Recorder in Bangladesh is ৳92000 You can buy the Zoom LiveTrak L-20 20-channel Digital Mixer / Recorder at best price from our website or visit any of our Store.
