Xiaomi Mi WIFI Router Mini Version 11AC 1167Mbps 2.4G/5G External USB Storage Smart APP Control

• Number of USB Interfaces: 1 x USB 2.0
• Brand Name: Xiaomi
• Function: VPN,QoS
• Wi-Fi Transmission Standard: 802.11n
• With Modem Function: No
• Standards And Protocols: Wi-Fi 802.11g,Wi-Fi 802.11n,Wi-Fi 802.11b
• LAN Ports: 2
• Max. LAN Data Rate: 100Mbs
• Package: Yes
• Model Number: XIAOMI ROUTER MINI
• Wired Transfer Rate: 10/100/1000Mbps
• 5G Wi-Fi Transmission Rate: 867Mbps
• WAN Ports: 1 x10/100Mbps
• 2.4G Wi-Fi Transmission Rate: 300 Mbps
• Supports WPS: No
• Supports WDS: Yes
• Wi-Fi Supported Frequency: 2.4G & 5G
• Application: Home
• XiaoMi Model: Mini
• Type: Wireless
• Max. LAN Data Rate: 100Mbps
• Wireless: Wireless
• Products Status: Stock
• Model Number: XIAOMI MINI ROUTER

Xiaomi Mini WIFI Router 11AC WiFi Roteador 2.4G/5G External USB Storage 1167Mbps Smart APP Control

Language Problem :

There is Chinese version for this model.English Only support Mi Router APP for IOS and       Android.Chinese firmware for PC Web management. Scan QR code on the specification, according to the prompt operation,APP Control it’s very simple.

If you want to buy the English version, Please click on the links to purchase the following pictures.

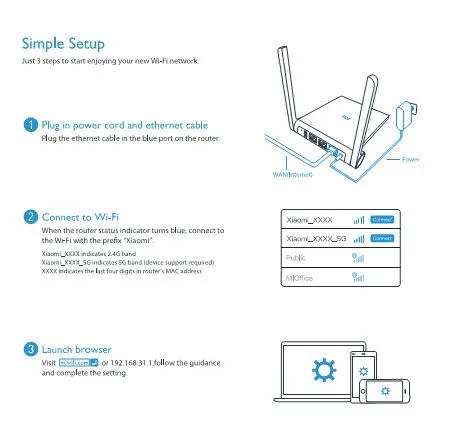

About Set Router:

Scan QR code on the specification, according to the prompt operation,APP Control it’s very simple.

About Power Connector：

Gift Power Supply transformation Joint*1 Converter for your country.

NOTE:

Don’t Support ADSL , USB 4G/3G module, SIM Card

Coverage Range:

Usually 10 to 25 meters, depending on the type of termina(PC ＞PAD＞ Phone）And obstructions.

If your house is very big,you can use the router relay functionality or purchasing WIFI repeater.

Specifications:

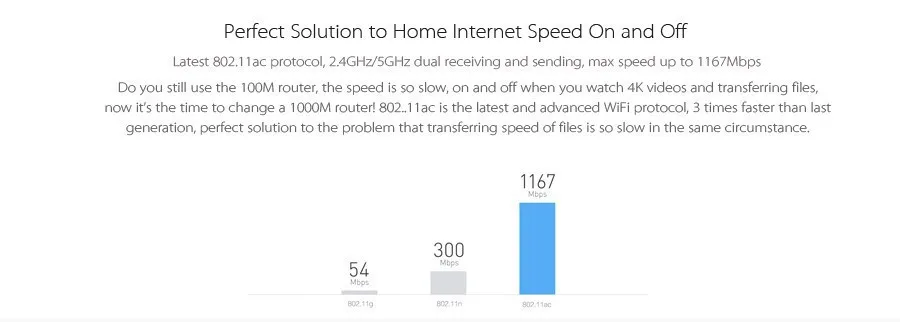

• WIFI Speed: 2.4GHz 300Mbps+5GHz 867Mbps
• Material: ABS+PC
• RAM: 128MB DDR2
• ROM: 16MB SPI Flash
• USB 2.0 Port * 1 (DC Output: 5V/1A)
• LAN Port: 2*10/100M (Auto MDI/MDIX)
• WAN Port: 1*10/100M (Auto MDI/MDIX)
• Working Temperature: 0-40 Celsius degrees

Package Contents:

• User Guide *1
• Power supply(12V/1A)*1
• Power Supply transformation Joint*1 (this gift doesn’t offer after-sales service)

Product introduction:
