Xiaomi Mi Router 3



processor	MT7620A
ROM	128MB SLC Nand Flash
RAM	128MB DDR2
2.4G WiFi	2X2 (support IEEE 802.11N protocol, the maximum rate of up to 300Mbps)
5G WiFi	2X2 (support IEEE 802.11AC protocol, the maximum rate of up to 867Mbps)
antenna	External omnidirectional multi-oscillator high gain antenna 4 (2.4G maximum gain 5dBi 2 5G maximum gain 6dBi 2)
cooling system	Natural heat dissipation
Interface	1 USB 2.0 interface (DC output: 5V / 1A)
	2 10 / 100M adaptive LAN ports (Auto MDI / MDIX)
	1 10 / 100M adaptive WAN port (Auto MDI / MDIX)
	1 red / blue / yellow three-color LED indicator
	1 system to restore factory settings button
	1 power input interface
Size	195 * 131 * 23 mm
Weight	220g
Material	ABS
Color	White
2.4GHz and 5GHz dual-band concurrent
Wireless channel	2.4 GHz Channel: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12,
	5GHz Channel: 149,153,157,161,165
	5GHz DFS Channel: 36,40,44,48,52,56,60,64
Modulation mode	11b: DSSS: DBPSK (1Mbps), DQPSK (2Mbps),
	CCK (5.5 / 11Mbps)
	11a / g: OFDM: BPSK (6 / 9Mbps),
	QPSK (12 / 18Mbps), 16QAM (24 / 36Mbps),
	64QAM (48 / 54Mbps)
	11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM.
	Rate set: MCS0 ~ MCS15
	11ac: MIMO-OFDM: BPSK,
	QPSK, 16QAM, 64QAM, 256QAM.
	Rate set: MCS0 ~ MCS9 (support 2 space flow)
Receiving sensitivity	11 Mbps: ≤-90 dBm, 54 Mbps: ≤-72 dBm,
	HT20 MCS7: ≤-69dBm,
	HT40 MCS7: ≤-66dBm,
	VHT20 MCS8: ≤-65dBm,
	VHT40 MCS9: ≤-60dBm,
	VHT80 MCS9: ≤-58 dBm
Wireless security	WPA-PSK / WPA2-PSK encryption, wireless access control (black and white list), SSID hidden
Protocol standards	IEEE 802.11a / b / g / n / ac, IEEE 802.3 / 3u
Certification standards	GB9254-2008 YD / T993-1998 GB4943.1-2011
Package include:	1 x Xiaomi Router 3
	1 x Power supply (12V / 1A)
	1 x User Manual

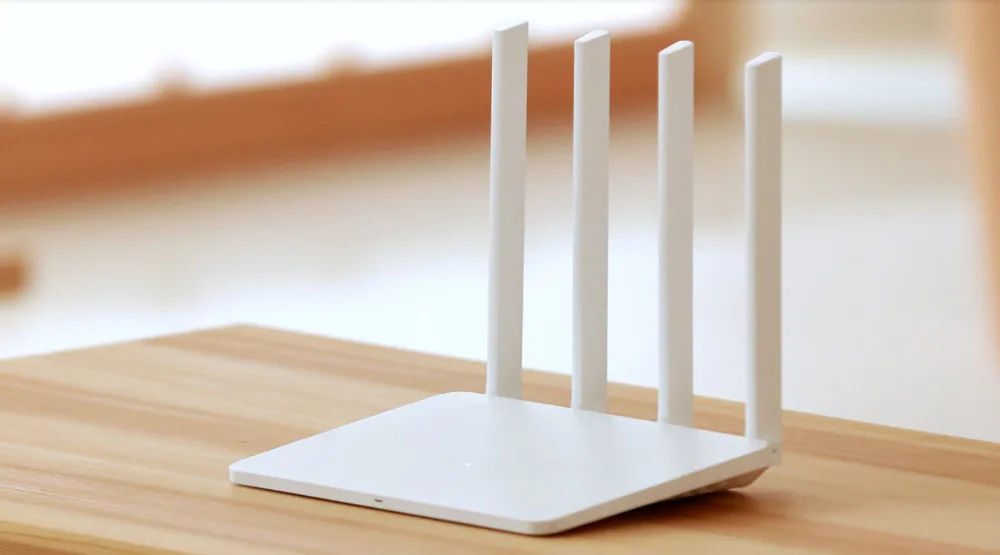

Xiaomi Router 3

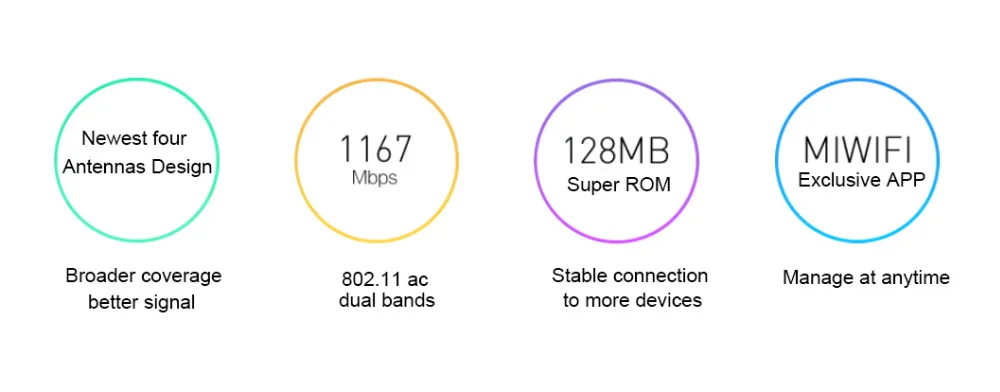

4 antennas design / 128MB super flash / 802.11 ac three times faster / more safe more stable





Xiaomi Router 3 with better signal

Newest four antennas design, 802.11 ac WIFI, 128MB super flash configuration, funny useful APP



Three times faster than normal WIFI

Xiaomi Router 3 has great improve in configuration and performace, and three ways to accelarate; wide band acceleration, website acceleration, download acceleration, to make sure you have good experience on dail using internet.

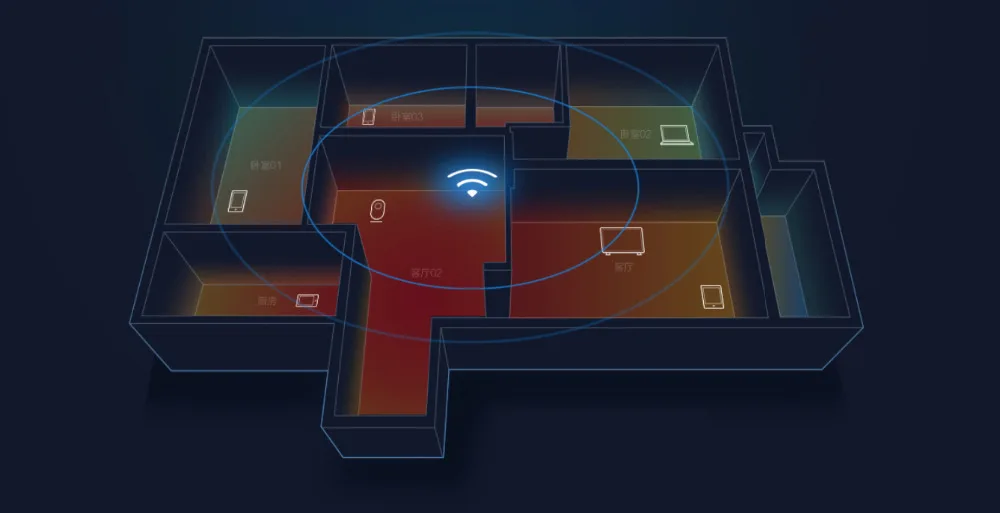

WIFI signal out of house, wider coverage

126 devices conecction supported, satisfy the whole family

Applied with new antenna design, 4 pcs external ommidirctional Antennas separate 2.4GHz antenna and 5GHz, while specialize different frequency to

make stronger signaland broader coverage. Upgrated router 3 maximize the quality of coneccted devices, to keep fluent internet.

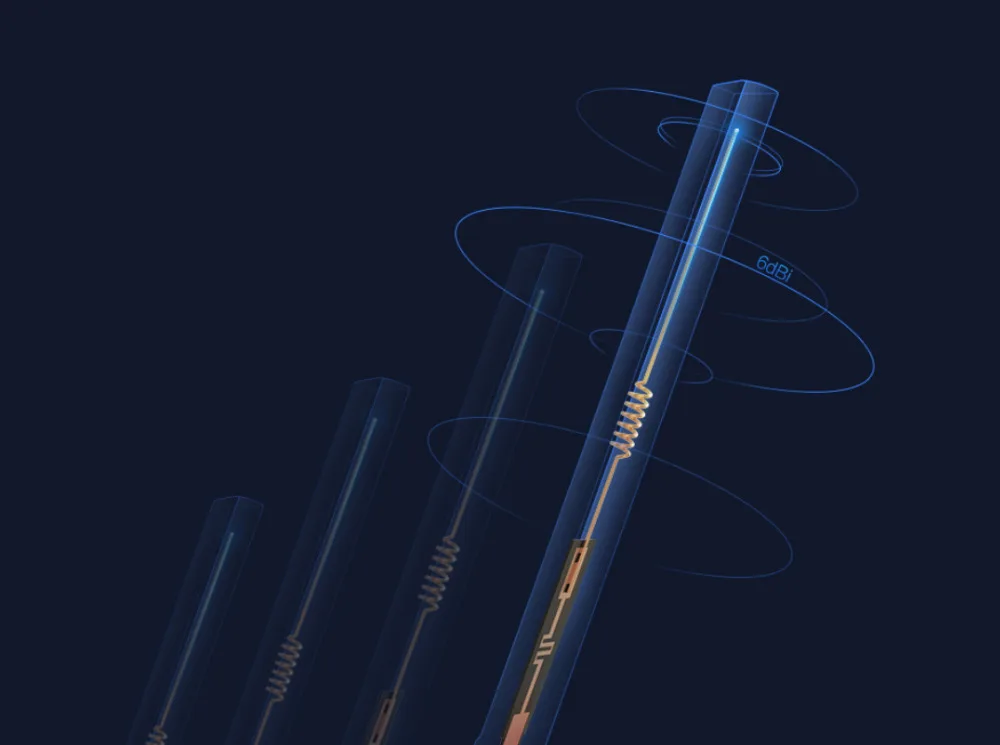

Four piece external omnidirectional Antennas Stronger signal

For band 2.4GHz up to 5dBi, for 5GHz up to 6dBi





Even though you are not at home, you can control all in your home

Exclusive app for mi router, not only internet

Control of internet access

Set specific time online by xiaomi router app, Scientific planning schedule

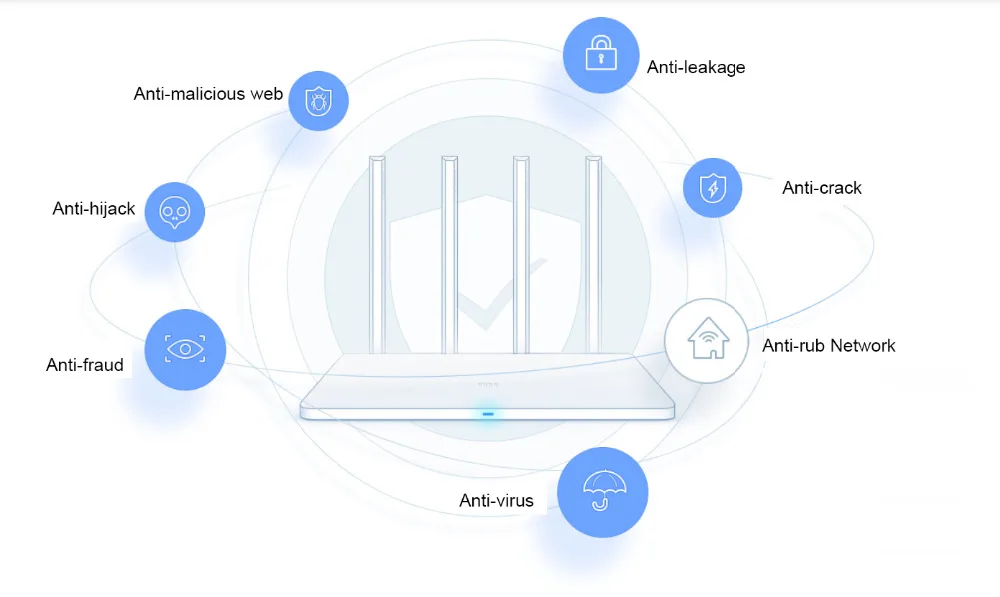

Seven security for your important privicy





More stable performace, reduce restart

128MB super Flash, more connected device, more funny function.

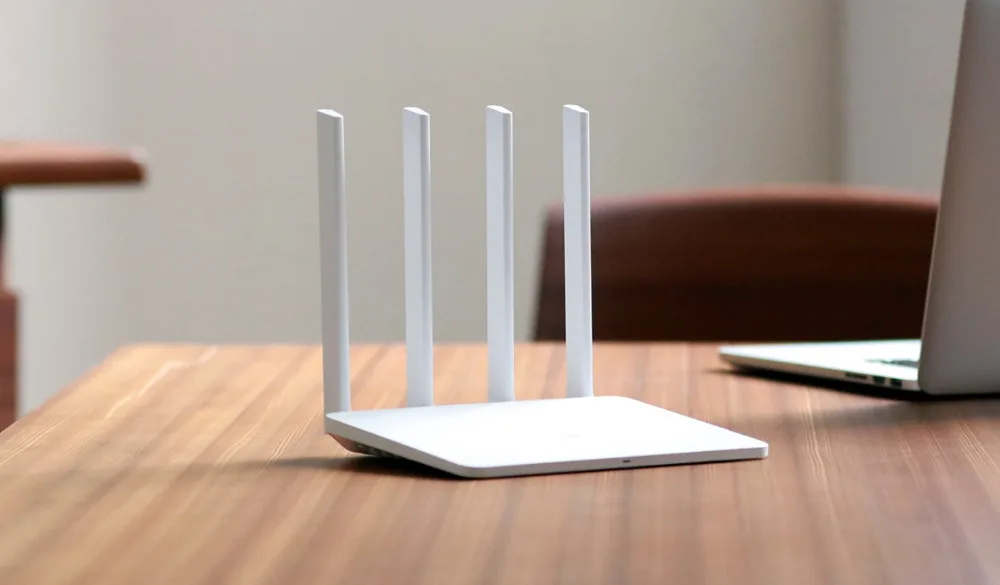

New design, different experience

Equipped with 4pcs antennas, update its performance than ever. Coordinated with 411 vents of the bottom and 3 of the back, to be a good cooling channel.

Improved the stability in daily use.





More service outside, connection by one click

Xiaomi router will service you free WIFI.
