Steinberg Ur 44 Soundcard

Steinberg Ur 44 Soundcard

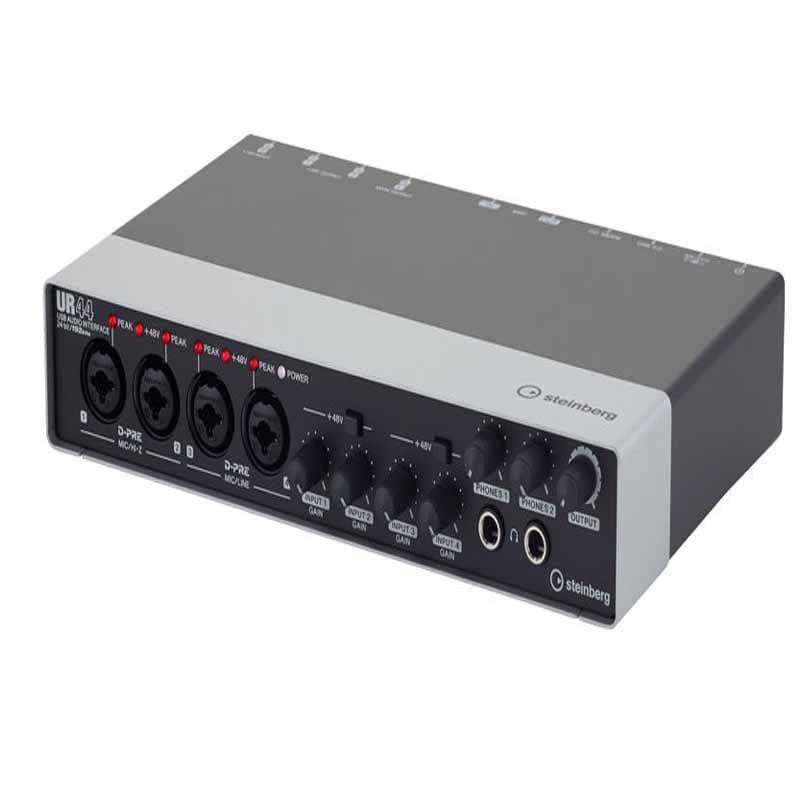

The UR44 6×4 USB 2.0 Audio Interface from Steinberg is a USB audio interface capable of capturing audio in up to 24-bit/192kHz and can be used for studio, mobile, and live sound applications. It features 4 front-panel combination XLR/TRS mic/instrument level inputs with Yamaha’s D-PRE mic preamplifier, each with independent gain control. Two rear panel 1/4″ line level inputs round out the UR44’s analog inputs. Also located on its rear panel are its four 1/4″ line level outputs and stereo 1/4″ main outs.

The interface also features 5-pin DIN MIDI ins and outs, allowing it to function as a MIDI interface. Two 1/4″ headphone jacks with independent volume control allow you to quietly monitor while tracking or in quiet environments. Its multiple I/O routing capabilities allow the UR44 to be used in studio or in live scenarios, with applications ranging from mobile recording to triggering stage lighting or playing backing tracks. A downloaded version of Cubase AI is included.

  Specifications:

• 24-Bit/192 kHz
• 4x D-PRE Microphone preamps
• Zero-latency monitoring
• DSP-based effects REV-X reverb and Sweet Spot Morphing Channel Strip
  Switchable 48V Phantom power
• Includes Steinberg Cubase AI 7 software (download version)
• Dimensions: 252 x 47 x 158 mm
• Weight: 1.6 kg
• Connections:
• 4 Analog MIC/Line Combo Inputs XLR / 6.3 mm Jack – Input 1+2 usable as Hi-Z inputs (Guitar/Bass), front side
• 2 Analog line inputs 6.3 mm jack balanced, back side
• 4 Analog outputs 6.3 mm jack
• 2 Analog main outputs 6.3 mm jack
• 2x Headphone outputs 6.3 mm jack
• MIDI I/O
• USB

Featurs:

Computer Connectivity: USB 2.0
Form Factor: Desktop
Simultaneous I/O: 6 x 4
Number of Preamps: 4
Phantom Power: Yes
A/D Resolution: 24-bit/192kHz
Built In DSP/FX: Yes (Monitoring with Effects/Processing)
Analog Inputs: 4 x XLR Combo, 2 x 1/4″
Analog Outputs: 4 x 1/4″
MIDI I/O: In/Out
Height: 1.85″
Width: 9.93″
Depth: 6.22″
Manufacturer Part Number: UR44
