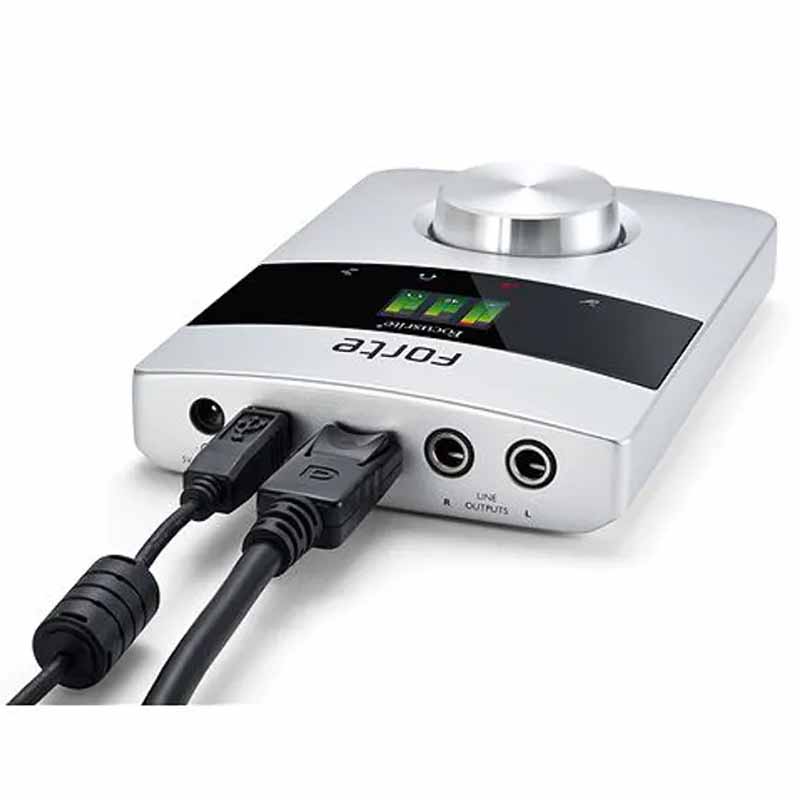

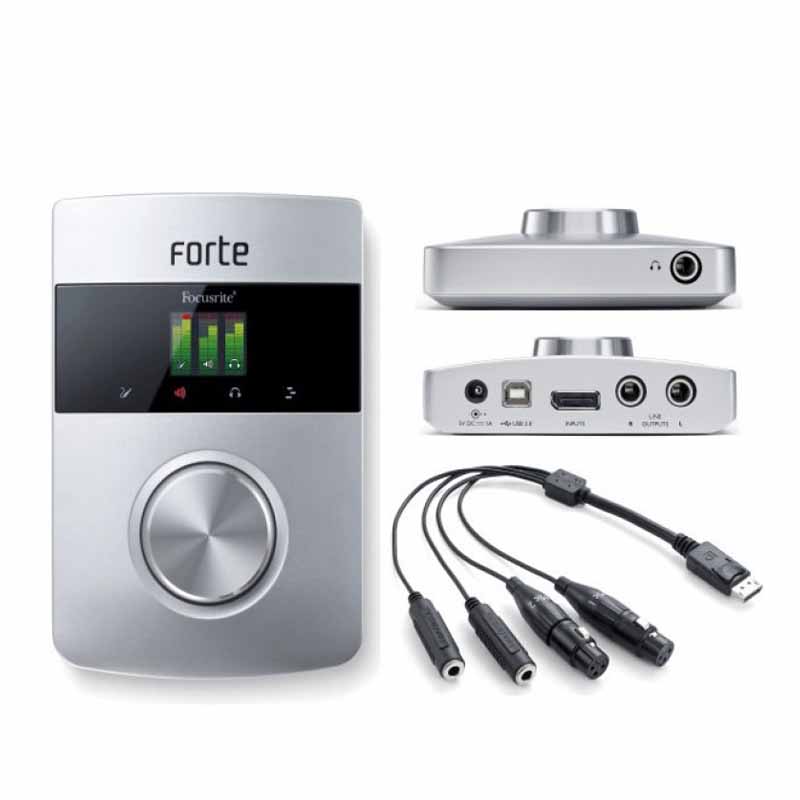

Focusrite Forte Soundcardrite
The Focusrite Forte is one of most sleek and powerful interfaces on the market, It features Focusrites high end REDNET preamps and a bright OLED screen.With 2 in and 4 out it is ideal for anyone requiring the highest quality capture with the most portable interface
Features
- Two Focusrite RedNet remote-controlled microphone preamps
- Ultra-high quality A-D and D-A conversion at up to 24-bit/192kHz resolution
- +48V phantom power, HPF and polarity reverse
- Mac and Windows compatible
- Bus-powered (except when 48V phantom power is engaged)
- Premium aluminium enclosure
- Built-in main monitor outputs do not require a breakout cable!
- Supplied breakout cable for mic and line inputs only
- Touch-sensitive buttons
- Large metal control knob
- Colour OLED (Organic LED) metering/display
- Control and configuration software included
- Focurite’s superb plug-in emulation of the classic Forte Console EQ and Compression, Midnight, is included
Forte USB Audio Interface Specifications:
Hardware Specifications
- 2 in / 4 out USB audio interface
- 192KHz, 24-bit conversion
- 2 Focusrite microphone preamplifiers
- Silver aluminium chassis
Top panel - Large multi-function push encoder
- 4 touch sensitive mode buttons
- Headphone socket (front panel)
Rear panel - 2 balanced monitor outputs – ¼” TRS Jack
- Input Loom socket
- Power socket
- USB 2.0 Port
- Kensington Lock slot (rear side)
- Key Performance Figures
- Measured Real World ADC Dynamic Range 117 dB (A-weighted)
- Measured Real World DAC Dynamic Range 118 dB (A-weighted)
- Chipset ADC/DAC Dynamic Range 120 dB (A-weighted)
Microphone Inputs - Gain Range 0 – 75dB
- Mic Input RedNet remote controlled pre-amplifier
- Maximum Input level @ Minimum gain for 0 dBFS (Rs = 150 Ohms, without pad) 12dBu +/- 0.5dB
- Minimum Input level @ Maximum gain for 0 dBFS (Rs = 150 Ohms, without pad) -63dBu +/- 0.5dB
- SNR (A-weighted) -117dB (Rs = 150 Ohms)
- Frequency Response (Rs = 150 Ohms) 50Hz – 42kHz +/- 0.1 dB (-0.5dB @ 20Hz)
- THD+N @ -1dBFS: 0.0007% (measured with +11dBu input, minimum gain, 1kHz with a 20Hz/22kHz bandpass filter, Rs = 150 Ohms)
- Noise EIN: 128dB (measured with 60dB of gain with 150 Ohm termination 20Hz/22kHz bandpass filter)
- Input Pad Attenuation 10dB (Rs = 150 Ohms)
- Phantom Power 48V, independently switchable for each channel (only available with external Power Supply connected)
